Growatt Inverter Monitor
-
WLAN communication module for the Growatt Inverters 750S to 3000S and the Hybrid Inverters SPH3000 to SPH6000.

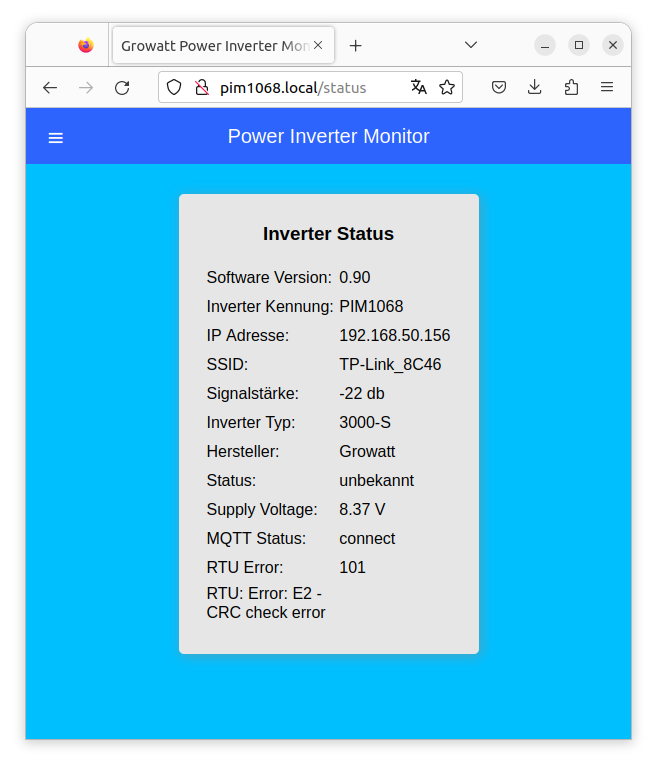

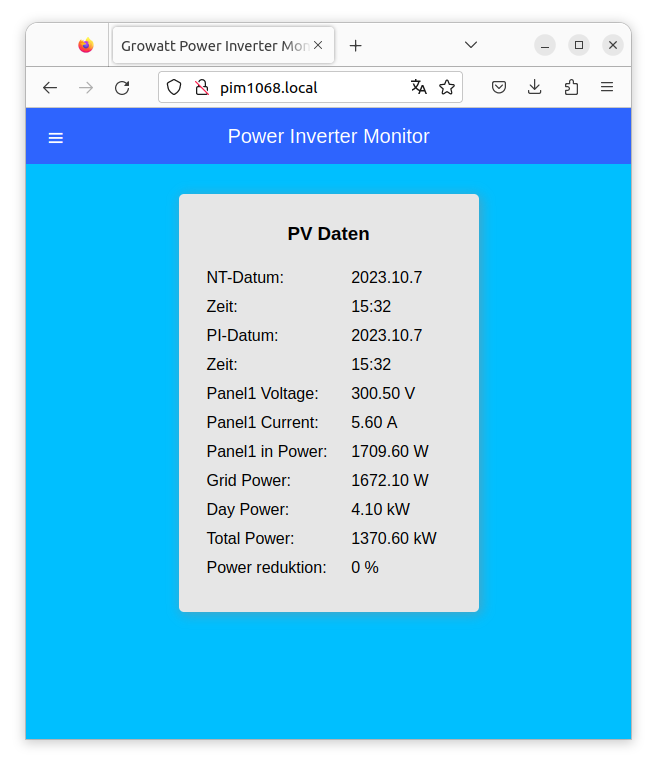

A special feature is that the PIM does NOT require an internet cloud connection but can be queried via the PIM's integrated HTTP server on the local network. All PV values available on the Growatt Shine bus, such as PV panel voltage, current, output power, daily yield, total yield, etc., are displayed. The data is stored in an internal log file and can be downloaded to a PC for analysis.
Another special feature is that all this data can be simultaneously transferred to an MQTT broker once this interface is enabled.
In addition to the functionality for querying power data, the output grid power can be actively controlled via the interface or MQTT in a range from 30% to 100%, as well as the charging and discharging power of the battery in the case of a hybrid inverter equiped with a battery.

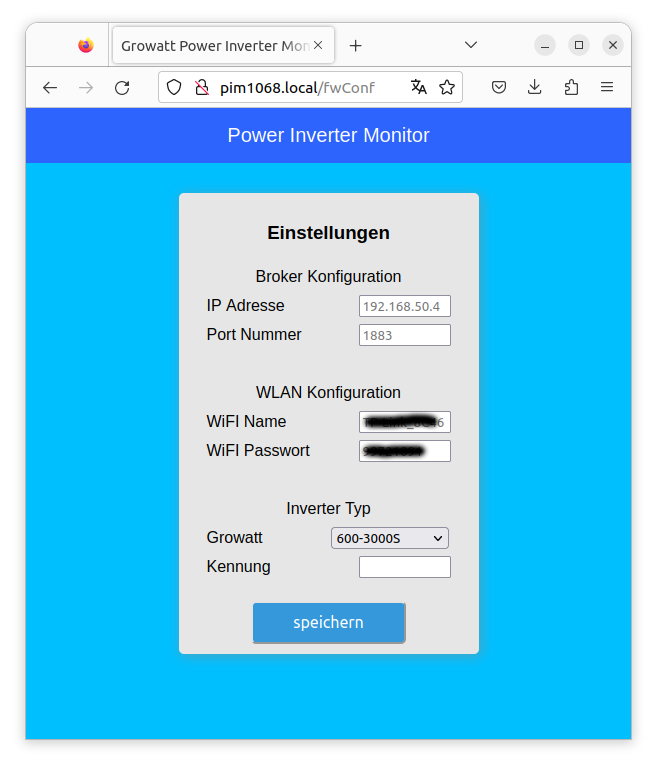

The PIM software can be updated via easy-to-use browser function.
Scope of delivery:
Growatt Inverter Monitor
